Terrafirma X4000 Electric Winch


This product is currently sold out.

Please fill in the form below if you'd like to be notified when it becomes available.

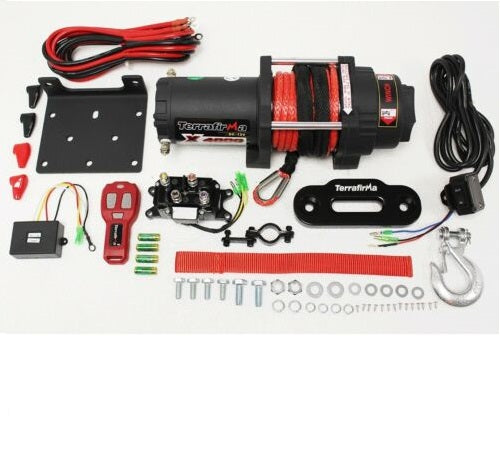

It is compact and powerful, pulling 4000lbs through 10m of synthetic rope. A fully automatic in drum break prevents 'roll back'. Supplied with an alloy fairlead and both wireless and cable remote controls just like its bigger brothers the A12000 and M12.5S.

X4000 winch specifications:

Rated pull line: 4000lbs (1814kgs) single line

Motor: permanent magnetic motor DC14v

Gear train: 3 stage planetary

Gear ratio: 198:1

Clutch: sliding ring gear

Braking action: automatic in the drum, independent mechanical brake

Fairlead: alloy fairlead

Synthetic rope: 33'(10.5mm)

Mounting hole pattern: 3" x 4.875" 125mmx76mm

Battery: 650 CCA minimum for winching 25 square mm, 130" (3.3m)

N.W: 19lbs (8.6kgs)
